Input Voltages | Control | ||
100V~240V AC,50/60Hz | International DMX512, 3 pins(optional 5 pins) interface | ||
Short mode 14 channels, standard mode 17 channels, and extended mode 19 channels | |||
Power Consumption | Master-slave mode | ||
350W@220V | Preset memories and user memory mode | ||
Light Source | Other Functions | ||
250W white LED(6,500k), 50,000 hrs | LCD panel | ||
Over temperature protection | |||
Strobe | Fast and convenient software upgrade via DMX512 interface | ||
Electronic strobe, 0-25 F.P.S(preset pulse strobe effect) | |||
Physical | |||

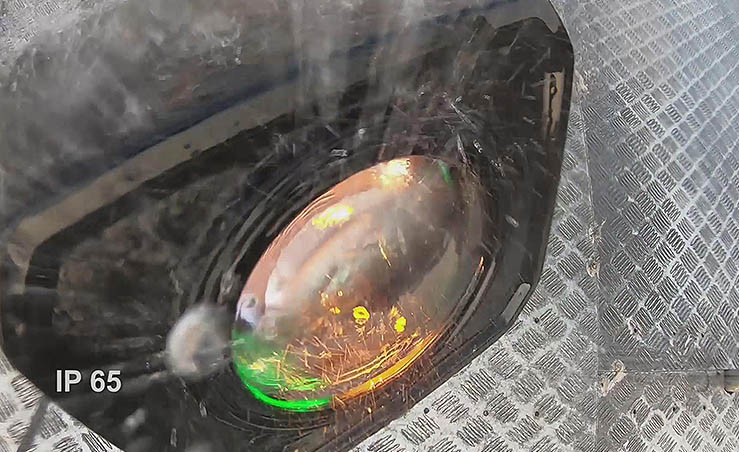

Dimmer | Housing: high-intensity die-casting aluminum, IP65 | ||
0-100% linear adjustment | Ambient working temperature: -20°C~40°C | ||
Prism | Weight | ||
Two prisms(3-facet prism and 4-facet prism), bi-drectionally rotating | Net weight: 18.5kg | ||
Effect | Packaging | ||
1 Flame effect wheel, with bi-directional rotation, animation wheel is replaceable | Standard: carton 600x375x345(mm) | ||
Optional: flight case 830x555x440(mm), 2 in 1 | |||
Light Angle | |||
Beam angle(1/2 peak)θ1/2: 8°~40° | Accessories | ||
C clamp, 1 pc | |||
Focus | Signal adapter cord, 2 pcs | ||
DMX linear focus | Power cord, 1 pc | ||
Safety cord, 1 pc | |||
Zoom | |||
DMX linear zoom | |||
| Color Wheel | |||
| 1 Color Wheel: 6 color filters and 1 CTO plus open | |||
| Rotating Gobo | |||
| 1 Rotating Gobo Wheel: 7 replaceable gobos plus open | |||
| Bi-drectionally rotating, index, shaking at variable speed and bi-directional scrolling effect | |||
