XRLED 3500-W Framing
Model No.PR-8847

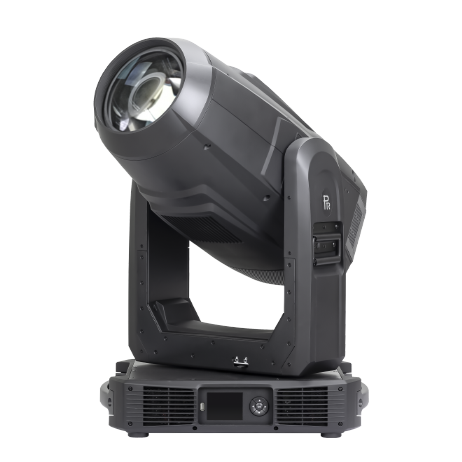

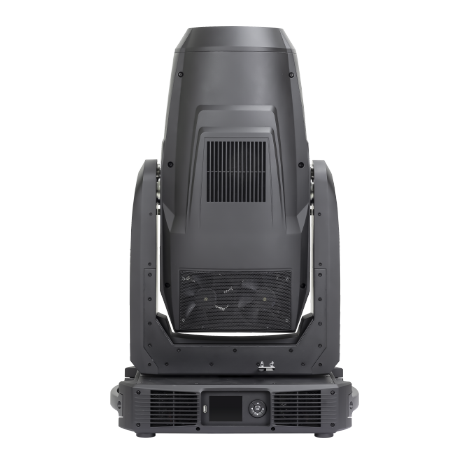

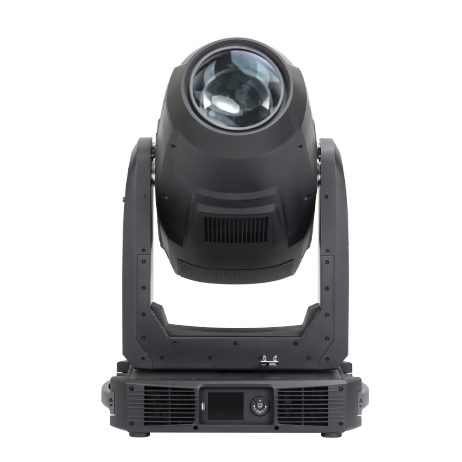

XRLED 3500-W Framing
Features
Download
Input voltage

Fixture types

100V-240V AC,50/60Hz

Including moving head light, fixed-focus profile light, zoom profile light



Moving head light with beam angle range(5-50°)

Input power

Fixed focus profile light with beam angle options including 5°,10°,19°,26°,36°,50°

1900W@220V

Zoom profile light with beam angle ranges including 5-15°,15-35°,35-50°



(Note: Auto quiet theater mode for fixed focus profile light and zoom profile light)

Light sources



1500W white LED module(6500K, ≥20000hrs)

Brightness calibration function



With brightness calibration function to calibrate initial brightness for

Cto

a single fixture or multiple ones and store brightness values into the fixtures

Linear CTO system(0-100%, 1800K-6500K)






Effect wheel

CRI mode

1 animation effect wheel, bi-directional rotation with varied speeds

Running at high CRI mode via DMX channel to ensure high CRI optical effect.



Iris

Control

Linear iris 5-100% with macros

International standard DMX512 signal and RDM function



47channels in short mode, 52channels in standard mode,67channel in extended mode

Prism

Art Net protocol , sACN protocol, DMX512 wireless control

1pc of 4-facet circular prism+1 pc of linear prism,



bi-directional rotation with varied speeds with indexing function

Control interface



DMX512 ports(5-pin)

Frost

Ethernet port RJ45

2 frost filters: 1 heavy frost filter + 1 light frost filter( 0-100% linear )






Beam angle

Other functions

Linear zoom5°~50°with 16 bit precision

Pan and Tilt speeds adjustable



Pan and Tilt swappable and invertible

Focus

High precision magnet sensor for positioning

Linear focus with auto-focus function

Built-in rechargeable battery for control panel without mains power



3.2-inch touch color screen, Chinese and English menus,

Dimmer

Screen automatic lock –up while standby

Linear electronic dimmer 0-100% with 16 bit control

Error diagnostic system with sensors, Smart fan cooling system

3 dimmer speeds

Display of fixture hours and software versions

4 dimmer gamma curves

Modular construction for easy maintenance, Isolated input signals

Dimmer frequency(1.2K-25K)

Firmware update via DMX cable





Strobe

IP rating

Electronic strobe, 0.3~25 F.P.S

IP20





Head movement

Operation temperature

Pan 540º, Tilt 270º with auto position correction and 16 bit control

45℃ at Maximum




Advanced macros

Color temperature macros: optional 2700K,3000K,3500K,4000K,4500K,5000K,5700K

Weight

Standard color macros: 89 color options based on standard color chart.

Net weight 47.8 Kg


Fan mode
Standard mode and theater modes. Theater mode is quiet mode





Name
Description
Download
Specification
XRLED 3500-W Framing Spec
User manual
PR-8847
